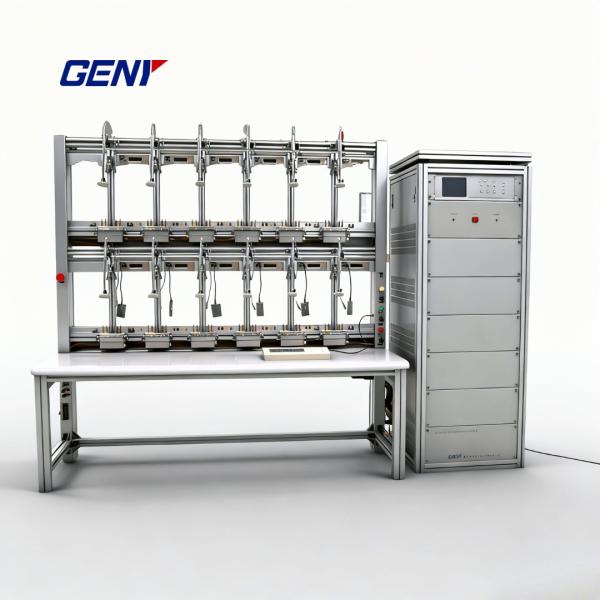

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Name: IECCompliant Automatic Meter Test Bench for Energy Meters
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC1891/3D

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 pcs

Price : negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 30 PCS per month

Delivery Time : 30 days after order confirmed

Packaging Details : Plywood Case

Accuracy : 0.05 / 0.02/ 0.01%

Power of the voltage output : Max.3*2000VA

Power of the current output : Max.3*2800VA

Ambient temperature : -10°C -- +40°C

Contact Now

IEC-Compliant Automatic Meter Test Bench for Energy Meters

Our advanced energy meter test system utilizes state-of-the-art electronic measurement technology and a modular design, resulting in a fully automatic calibration solution. The system is fully compliant with the IEC 60736 standard and supports high-efficiency, multi-position testing for electric energy meters.

Designed for versatility, it can be seamlessly integrated with a variety of reference standards and power sources. This flexibility allows us to meet the specific requirements of a wide range of clients, including energy meter manufacturers, power utility companies, governmental metrology institutes, and calibration laboratories.

Key Features of Our Meter Test Bench:

IEC-Compliant Performance: Built strictly to IEC standards, supporting full testing coverage for active/reactive/apparent energy (all 4 quadrants) — critical for global meter certification.
Durable Aluminum Alloy Construction: Lightweight yet robust, with corrosion resistance to ensure long-term stability in lab/industrial environments.
Fully Automatic Testing Capabilities:
- Accuracy testing (4-quadrant, IEC-aligned)
- Creeping (no-load) & starting current tests
- Dial/register verification
- Influence quantity testing (voltage, frequency, harmonic distortion)
- Error repeatability analysis
- Sub/odd harmonic testing (up to 41st order, IEC-standard)
- Tamper & fraud monitoring
- Simultaneous multi-position meter testing (high throughput)
Wide Voltage/Current Range: Supports up to 480V & 200A — compatible with most global meter specifications.
Built-In Protection Functions: Overload, voltage short-circuit, and current open-circuit safeguards to protect both the test bench and DUTs.
User-Friendly Software: Intuitive interface for Windows XP/7/8/10+; includes dedicated modules for all energy meter types (no extra software required).
Flexible Data Management: Stored test data can be exported in multiple formats (CSV, PDF, etc.) for seamless integration with third-party tools.

Specifications

Single - Phase

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Three-Phase

Technical spec.	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05 / 0.02
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
