Portable Multifunction Meter Test System YC99T-3C – Single & Three-Phase Calibration

Brand Name : GENY

Model Number : YC99T-3C

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,D/P

Supply Ability : 100/Year

Delivery Time : 1-4 weeks

Packaging Details : Plywood case

Model NO. : YC99T-3C

Meter Position : 3

Accuracy : 0.05

Contact Now

Portable Multifunction Meter Test System YC99T-3C – Single & Three-Phase Calibration

Simple Description


The GENY Portable Meter Test System is a compact, high-precision solution for on-site and laboratory energy meter calibration. It is widely used by utility companies, power plants, metrology institutes, industrial enterprises, and energy meter manufacturers. The system supports testing of single-phase and three-phase energy meters, including active, reactive, composite, and multi-function smart meters.


Main functions


  • Tests single-phase & three-phase mechanical/electronic meters

  • Automatic or manual testing: basic error, starting test, creeping test, standard deviation

  • Influence tests: voltage, frequency, harmonic, reverse phase sequence, unbalanced voltage

  • Supports DL/T645 communication protocol for multifunction smart meters

  • Multiple communication ports: RS232, RS485, Ethernet, USB, WiFi, I/O

  • Outputs 2–63 harmonics

  • 8-inch touchscreen, fast and user-friendly operation

  • Tests up to 3 meters simultaneously


Specifications


AC Voltage Output
Item Specification
Voltage Range 57.7V, 100V, 220V, 380V, 660V
Adjustment Range 0–120% RG
Adjustment Resolution 0.01%RG / 0.1%RG / 1%RG / 10%RG
Stability 0.01%/2 min (0.05 cl), 0.02%/2 min (0.1 cl)
Distortion ≤ 0.2% (Non-capacitive load)
Max Output Load 20 VA / phase
Measurement Accuracy 0.05%RG (0.05 cl), 0.1%RG (0.1 cl)
AC Current Output
Item Specification
Current Range 0.05A, 0.2A, 1A, 5A, 16.67A, 50A
Adjustment Range 0–120% RG
Adjustment Resolution 0.01%RG / 0.1%RG / 1%RG / 10%RG
Stability 0.01%/2 min (0.05 cl), 0.02%/2 min (0.1 cl)
Distortion ≤ 0.2% (Non-capacitive load)
Max Output Load 50 VA (50A range)
Measurement Accuracy 0.05%RG, 0.1%RG
Power Output
Item Specification
Stability 0.01%/2 min (0.05 cl), 0.02%/2 min (0.1 cl)
Active/Reactive Power Accuracy 0.05%RG
Phase Output
Item Specification
Phase Adjusting Range 0° – 359.99°
Adjustment Steps 10°, 1°, 0.1°, 0.01°
Resolution 0.01°
Measurement Accuracy 0.05°
Power Factor Output
Item Specification
Adjustment Range -1.0 ~ 0 ~ +1.0
Measuring Resolution 0.0001
Measurement Accuracy 0.0005
Frequency Output
Item Specification
Adjustment Range 40 – 70 Hz
Adjustment Resolution 1 Hz / 0.1 Hz / 0.01 Hz / 0.001 Hz
Resolution 0.001 Hz
Accuracy 0.002 Hz
Harmonic Setting
Item Specification
Harmonic Order 2nd–63rd
Harmonic Amplitude 0–40%
Harmonic Angle 0°–359°
Harmonic Setting Error 2nd–31st: 0.1% ; 32nd–63rd: 0.2%
Energy Error Measurement
Item Specification
Active Energy Error Limit 0.05%RD (30V–660V, 0.02A–60A, PF 0.5)
Reactive Energy Error Limit 0.1%RD (30V–660V, 0.02A–60A, PF 0.5)
Standard Crystal
Item Specification
Frequency Accuracy 0.5 ppm (factory @ 25°C)
Frequency Stability 0.1 ppm (-20°C ~ +70°C)
Energy Pulse Input
Item Specification
Pulse Channels 3 active + 3 reactive
General Parameters
Item Specification
Power Supply AC220V ±15% or AC110V ±15%
Frequency 50–60 Hz
Consumption 60–1000 VA
Operating Environment 20°C ~ 30°C, RH ≤ 85%
Storage Environment -20°C ~ +50°C
Size 600 mm (L) × 400 mm (W) × 266 mm (H)
Weight 30 kg


Portable Multifunction Meter Test System YC99T-3C – Single & Three-Phase Calibration


Product Tags:

Portable meter test system with calibration



Multifunction meter tester YC99T-3C



Single-phase three-phase calibration meter

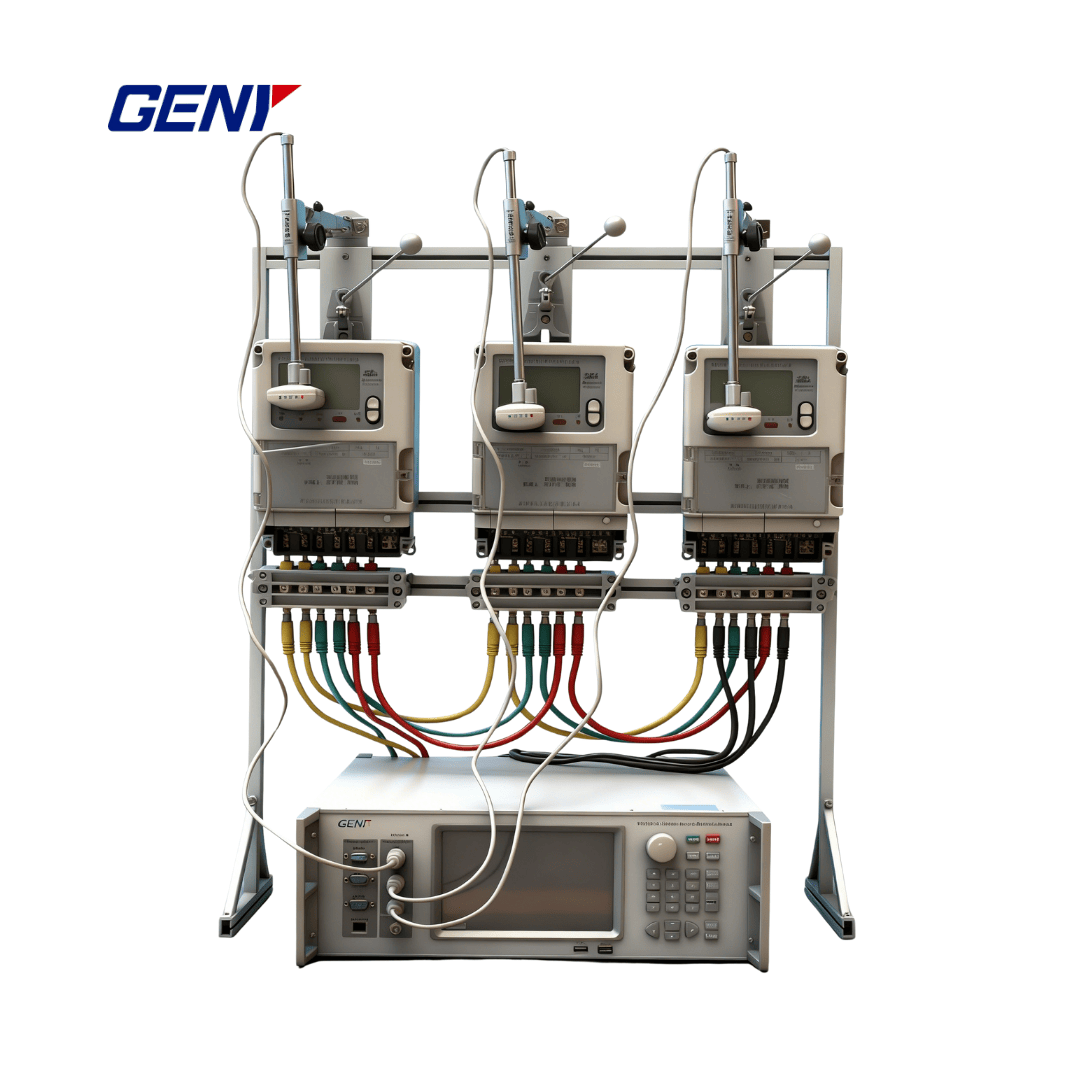

Cheap Portable Multifunction Meter Test System YC99T-3C – Single & Three-Phase Calibration for sale
